Airspool's new Quick 'n' Easy revolutionizes mini split installation
You asked for it, and it’s finally here. This no-vacuuming, no-wiring, no-cussing pre-configured unit will save most do-it-yourselfers +/- 5 hours (literally) and a couple of hundred dollars in tools you may never need (or want) in the future. We…

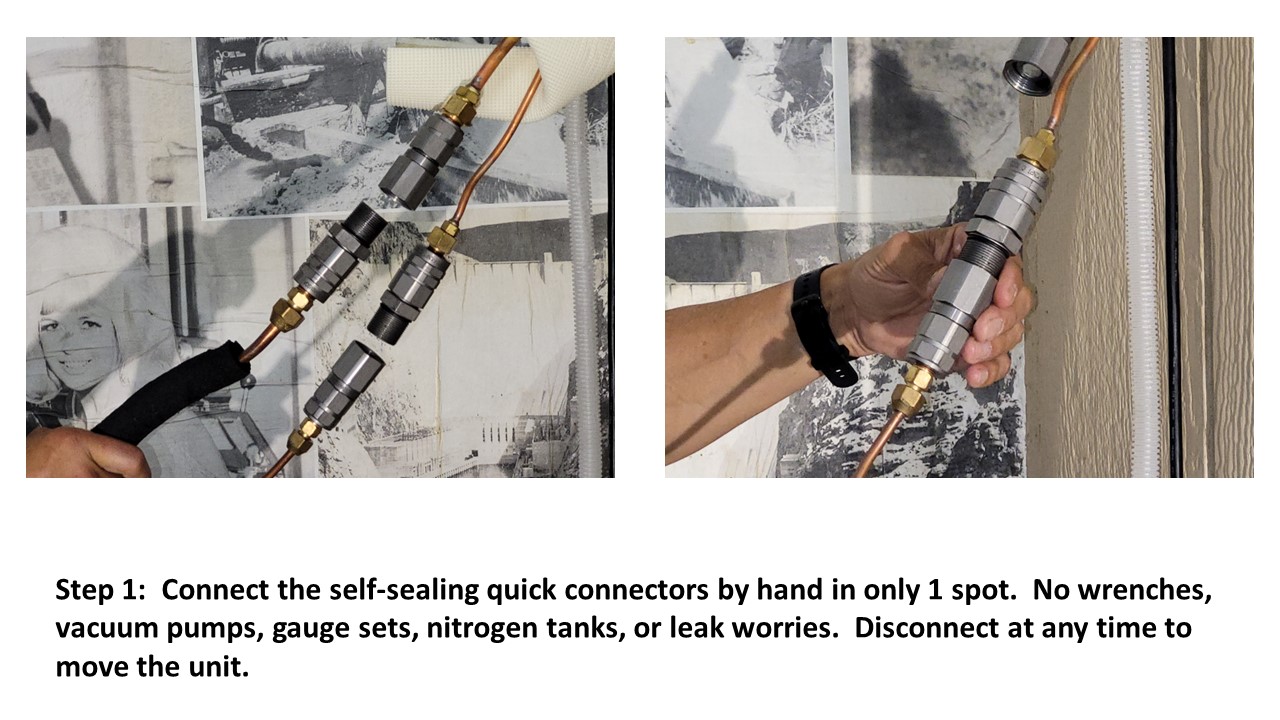

Pre-charged line set, avoiding the need to have (and the need to buy) a vacuum pump, refrigerant manifold gauges, and a nitrogen tank. And, equally important, you don’t need to know how to use any of this stuff or put any time into it. Instead, just hand twist to connect the two self-sealing connectors, and your work is done. See the diagram. If you need a longer line set than the standard 10’ one, get with us, and we’ll customize it to meet your needs.

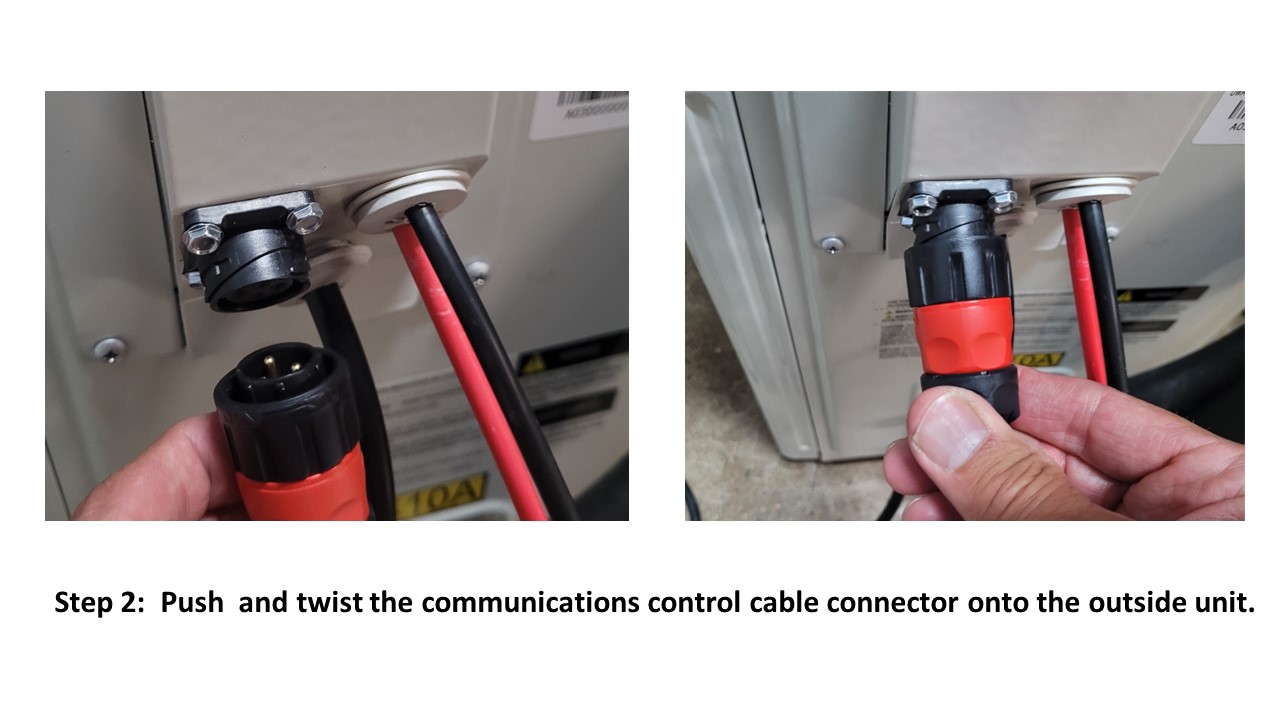

Install the communications/control wires, so you don’t need to know how to thread and connect the wires onto the inside unit and outside unit’s terminal block. Nor do you need to put the time into this process even if you’re an expert at wiring. You just hand twist to connect the control wires. See the diagram. No tools needed.

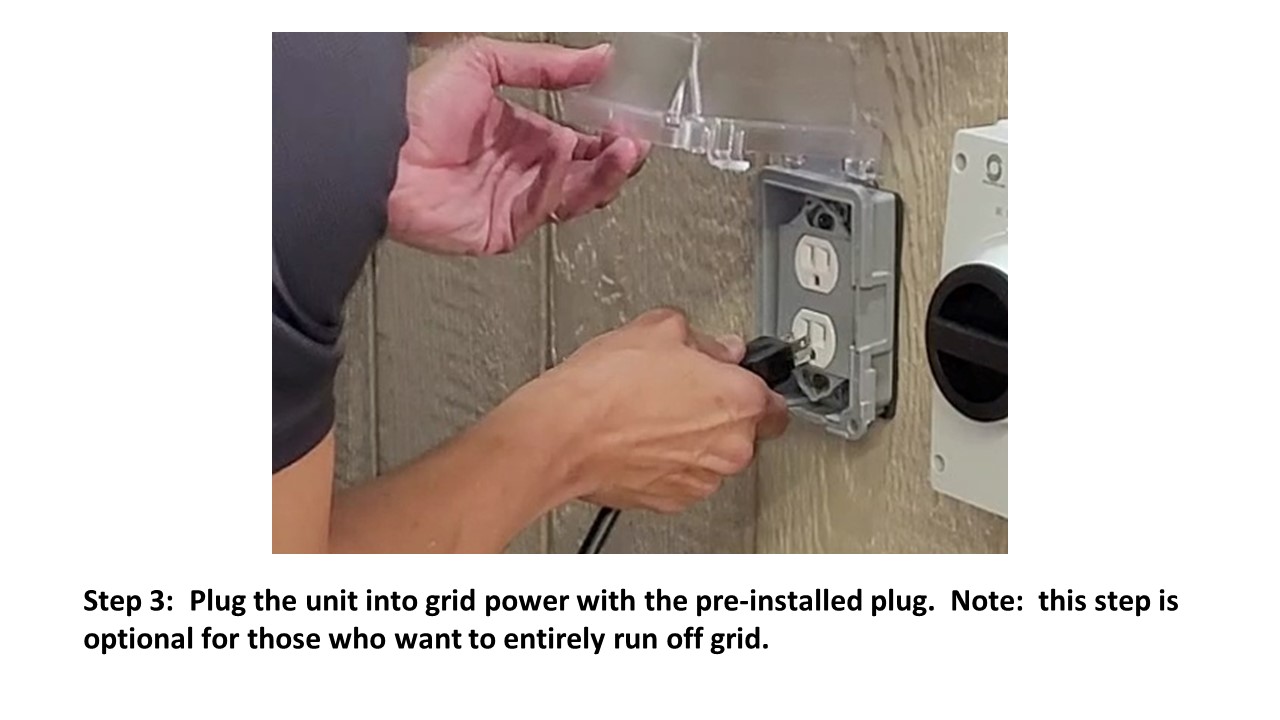

Provide you with a UL-approved preinstalled alternating current cord with a plug for 110v-120v North American power. You don’t need to know how to wire this up to the outside unit’s terminal block, or put any time into this. It’s done! See the diagram. If you want/need to connect to 220v-240, that’s possible, too, but may require an electrician to install a new breaker, etc. Still, 220v-240v is an option for running this unit if that’s easier or preferable for you.

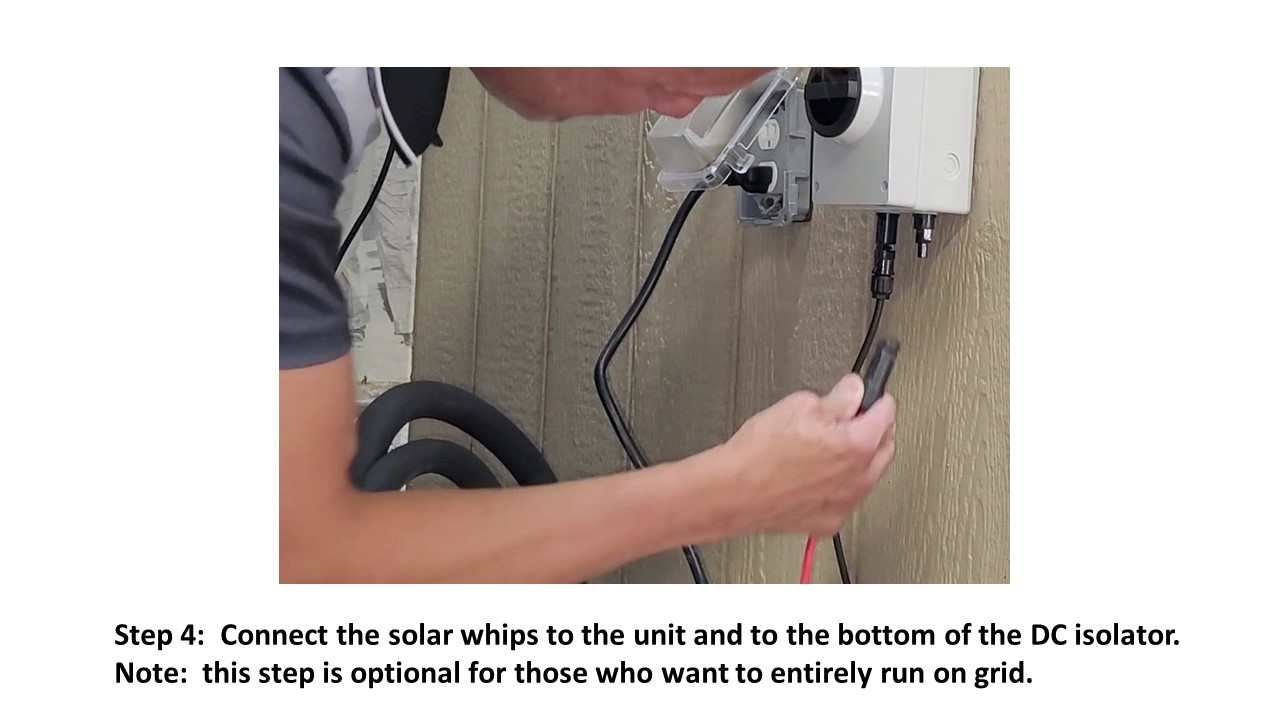

Give you pigtail solar wires preinstalled on the outside unit, making this process foolproof. No need to have extra solar wire and no need to connect MC4 connectors at each end. No crimping too needed or polarity issues. Just click into the DC isolator switch. No crimping tool or polarity issues

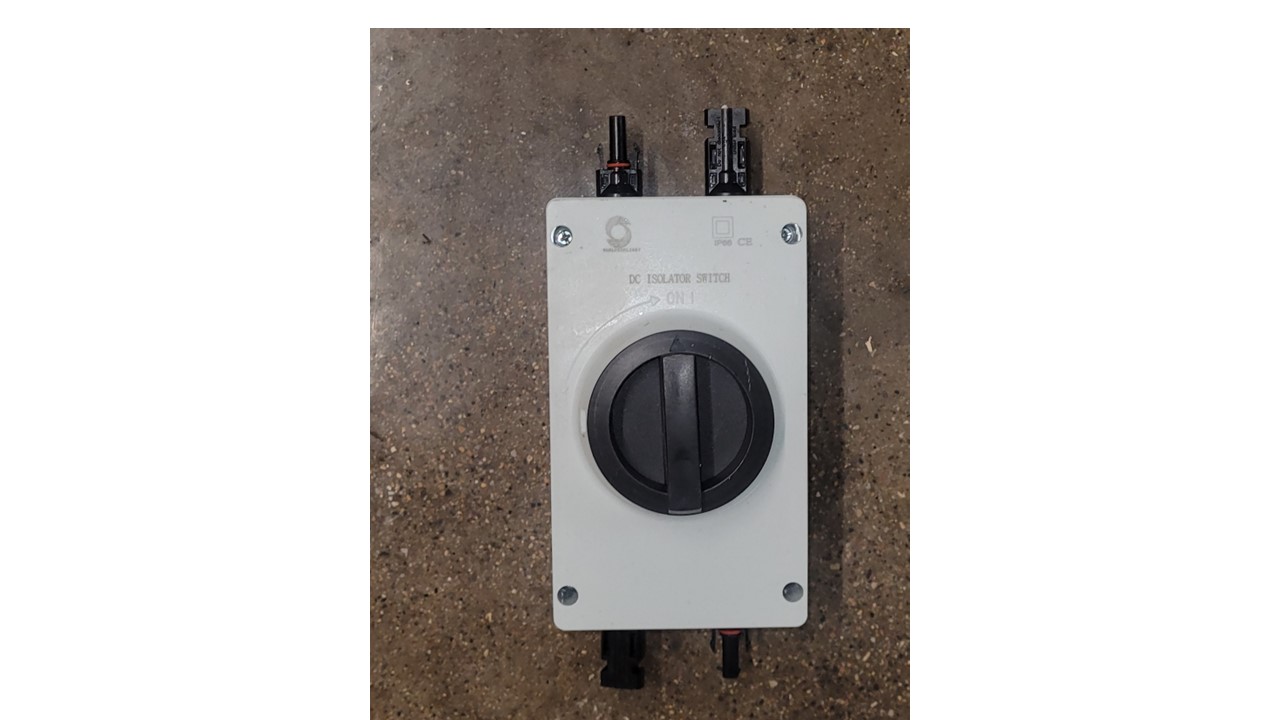

Provide you with a free DC isolator switch ($59.70 value), allowing you to disconnect your solar array during any maintenance to the system.

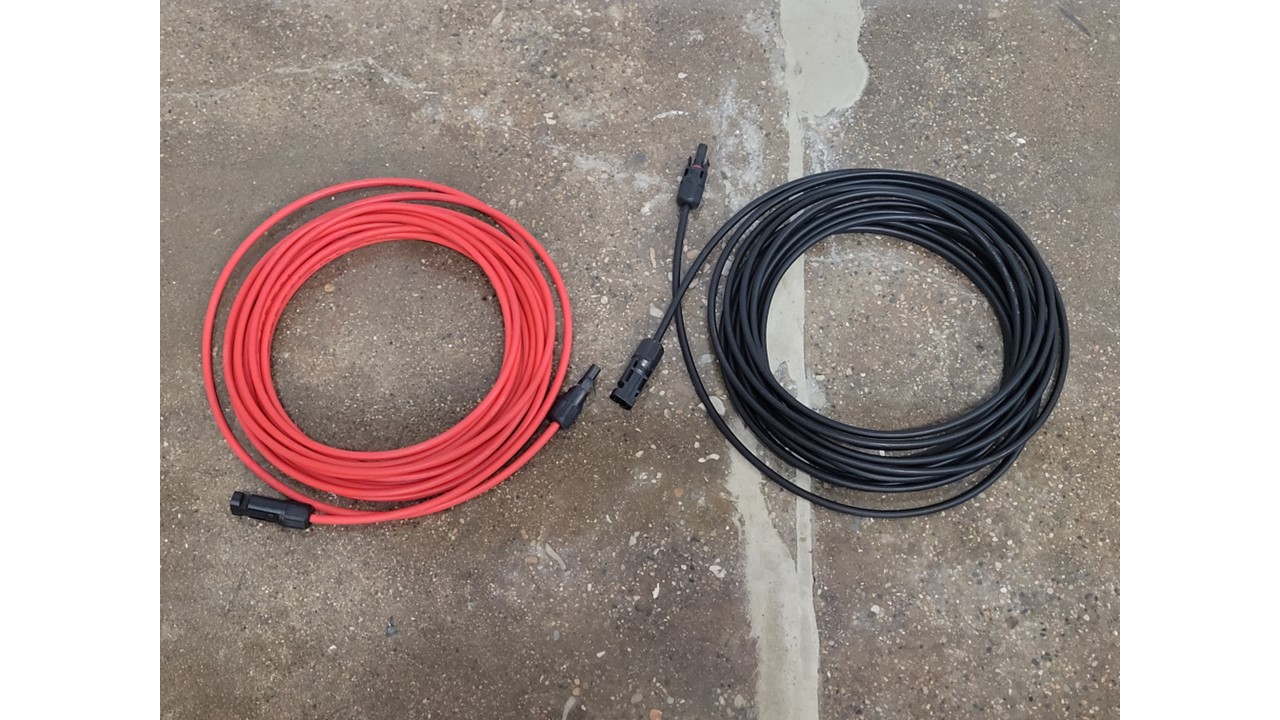

Provide you with 25’ of free solar wire ($37.80 value) with pre-installed MC4 connectors. Just connect to the top side of the DC isolator switch, and then just add solar—your done! No need to have extra solar wire and no need to connect MC4 connectors at each end. No crimping tool needed or polarity issues. No crimping tool or polarity issues
Make it so the only tool you'll need is a drill. We provide the rest, which are simple things like a small level, gloves, and drill bits (including the hole saw bit). We're not being overly generous, since as stated above, you simply don't need most of the more-expensive thngs like gauge sets and vacuum pumps to install this unit.
Whether you’re a novice or a pro, Quick ’n’ Easy makes your install Quick ‘n’ Easy. And, like our standard 'raw' model, this unit also includes our exclusive 1-year buy-and-try guarantee. You can return the unit for a whole year, no questions asked, to get a full refund, in addition to the 5-year compressor and 3-year parts warrantly. The Quick 'n' Easy is the simplest way to enjoy solar savings by eliminated or greatly reducing your cooling and heating bills.
