On Solar Air Conditioning--2023 Update
Why’s solar-powered air conditioning all the rage now?
Solar-powered air conditioning has been theoretically possible for years. But, in the past, it was neither cost justified nor simple. Solar panels were expensive, and air conditioners were inefficient by today’s standards, meaning even more panels would be required. Plus, attaching the panels to an air conditioner required a power conversion which not only further lessened the efficiency of such a configuration, but it also was expensive. In short, it was too big of a hurdle even for an ardent tree hugger.

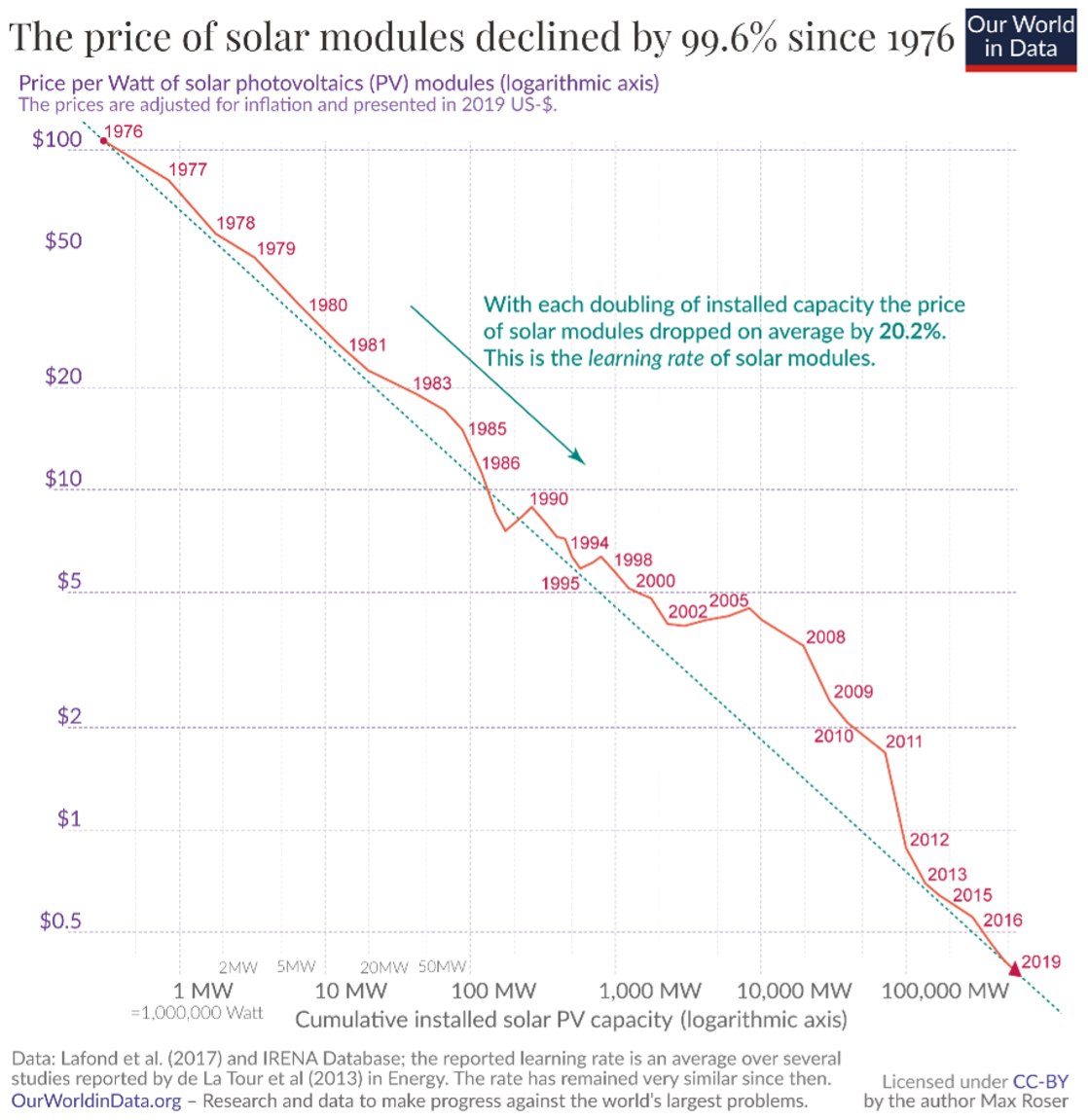

So, what’s changed? Just about everything. Panels are around ¼ of the cost they were 10 years ago, approximately following a price cascading called the ‘Swanson Effect,’ which states that solar panel costs decrease around 20% for every doubling of solar panels installed (see Figure 1, Courtesy of OurWorldInData.org). Without even taking greenhouse gas savings or environmental issues into account, they now produce energy at a rate less than burning coal or natural gasi. And, some small air conditioners (especially mini splits) now have electronic controls allowing variance of the motor speed and refrigerant flow, something previously only available on very large commercial air conditioning system, and something that's essential for avoiding the surge, or inrush, current that normal on/off air conditioners suffer from. Some air conditioners run on direct current, which is the same power the solar panels produce, so no power conversion is necessary. Finally, some units now allow solar panels to be plugged in directly to the outside unit of the air conditioner, and a printed circuit board inside the unit creates stable power for the air conditioner, potentially with the aid of grid alternating current as a backup to the solar. In short, technology to the rescue.
On the demand side, the global market for air conditioning is projected to grow at a 9.9% compound annual growth rate, dwarfing the $102b in revenue the industry amassed in 2018ii. This increase needs to be tempered with energy-efficient and environmentally friendly solutions. And stateside, many utility users have seen electric bills increase, sometimes inexplicably, given that utilities have also been adopting solar panels to their arsenal to bring down their own costs. Solar units can be installed anywhere, and run for free, or for very little cost, provided it’s sunny, to help offset these utility charges. They can be used in areas like garages, attics, or patios which traditionally would have been difficult or expensive. Where would you want to cool if doing so were free, leveraging the same solar rays that were making it warm? Welcome to the promise of solar-powered air conditioning.
How do the benefits and implementation of solar air conditioners compare to whole-house solar?
For many, whole-house solar is the way to go. The same decrease in the cost of solar panels and implementation is driving over 6x the annual installed watts now vs. 2012. Whole-house solar, in effect, makes your home a node on the grid. If your panels are making more power than you currently need, that energy is fed up to the grid, and you’re given whole or partial credit with your utility for supplying this to others on the grid who will use it. If it's nighttime or your panels are not creating enough power (due to weather, large temporary demand (maybe caused by air conditioning?), you pull that extra required energy down from the grid. To do this, you need an inverter that synchronizes your system to the voltage and frequency of the electricity flowing through the grid, and a net meter supplied by your utility to keep the ‘score’ indicating whether you supplied more energy to your utility or they supplied more to you. In the past, such systems have helped reduce user's grid consumption to almost nil, and, taking into account their cost amortized over time, reduced what they spent on electricity by 30% or more. The challenge of a net metering system, in addition to the large financial outlay, is that many jurisdictions around the country are changing the rules such that their public utility commissions (and lobbyists from the local utilities) are either shutting down future net metering altogether (as was the case in Nevada in 2015 until this policy was mostly reversed after public outcry) or changing the credit homeowners get for their uploaded energy, such as California's new Net Energy Metering 3.0, which requires those with whole-house solar to upload around 4 kWh of energy to get 1 kWh in credit. iii And, a major point to some: a net metered system doesn’t work, for safety reasons, when the grid is down, so there’s no power that you can utilize in the event of an outage. So, many whole-house solar owners are opting for battery storage to limit their need for the grid and to allow their home to be powered up even when the grid is down. Although this is expensive, this is becoming more viable as the cost of energy storage with batteries continues to come down.
Solar air conditioners or heat pumps (which supply not only cool air in the summer but warm air in the winter) have more of a targeted approach, and go after the ‘low-hanging fruit’ of energy consumption, which is the air conditioning (and, to a lesser extent) the heating energy consumed. For many users, this one area can be 70%+ of their summer utility bill. These units usually are only 12,000 to 24,000 BTU (1 to 2 ton), so they don’t supplant your main air conditioners or heat pumps. But what they do, they do well. They can keep running all day long for free, or nearly free, depending on the weather, continuously extracting heat. They can be placed in an area that is usually too hot (like an attic or upstairs office or a new addition without ductwork), even when the main unit(s) for the house are blasting away. This is the simplest and most affordable way to add the benefits of solar savings to that spot. Also, some units have batteries and some don’t (more on that momentarily), but the units always work when it’s sunny, regardless if the grid power is down. You can imagine the benefits of having a couple of these units on hand when there’s life-threatening heat like there was in Hollywood FL after Hurricane Irmaiv.
When and where does solar-powered air conditioning work? Who can benefit?

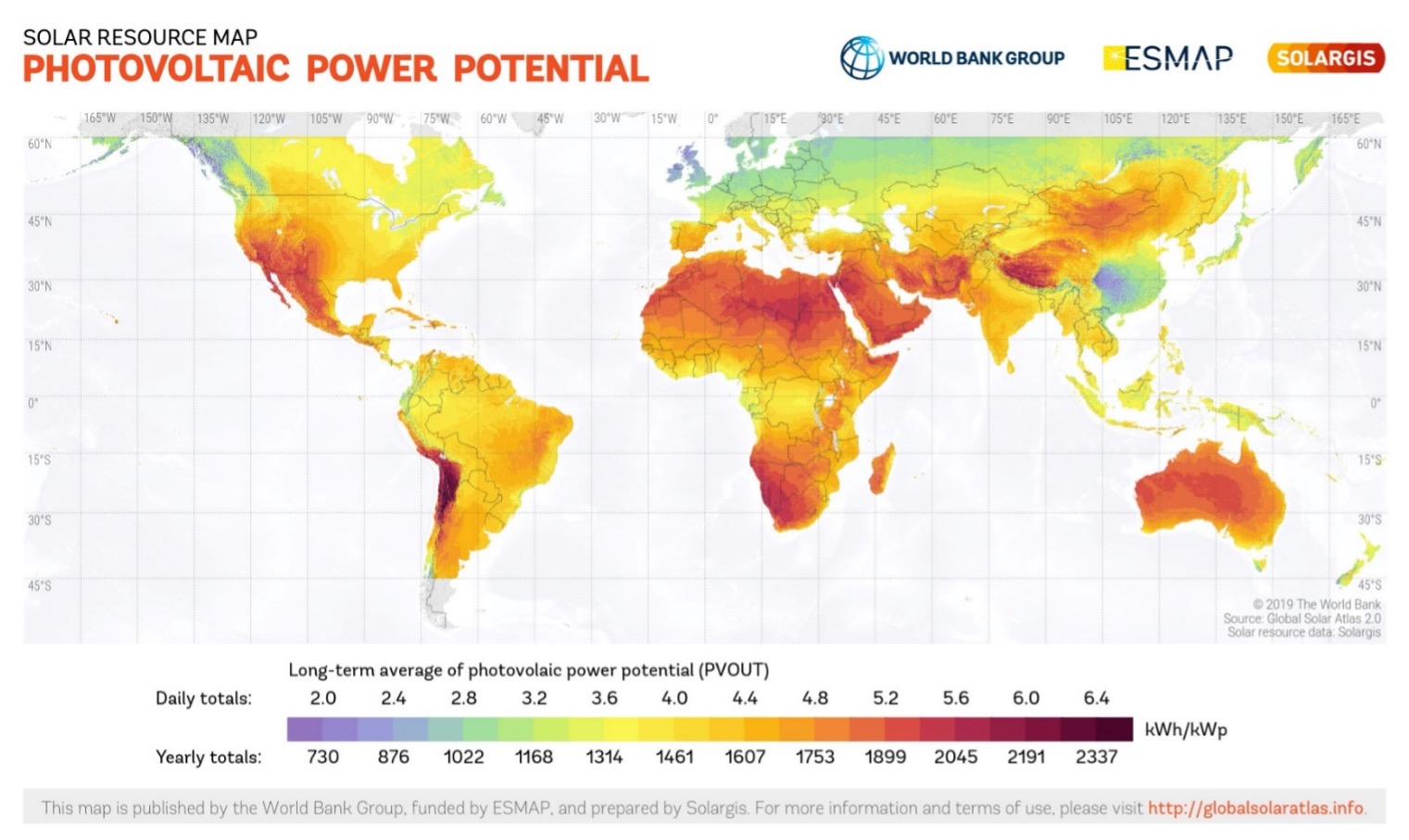

Solar energy is really light energy that arrives to Mother Earth via photons from the sun. Some areas are blessed with more solar energy than others. Figure 2 from the World Bank shows solar power potential based on past sampling.
The Southwest U.S. is more of a natural fit (or a no brainer?) for solar than the Pacific Northwest, for instance. As solar panels become more efficient, more powerful and less expensive, the ability to justify solar air conditioning becomes more viable in the yellow areas, and there’s even hope for the green areas, though, because although these areas have less sunlight, they also have less radiant heating, and both solar panels and air conditioning compressors run happier (more efficiently) in these areas. And, some of these areas have high utility rates, too, helping with the justification.
Yes, most solar-powered air conditioners are actually heat pumps, meaning that they have a reversing valve to allow them to function such that, in the winter, the inside unit produces heat. In the winter, a good percentage of the solar photons never reach solar panels, since the sun’s trajectory is lower on the horizon, and so many of the photons are diffused, scattered, or absorbed since they need to travel through more of the atmosphere. Couple that with shorter days in the winter, depending on the heating requirements of your conditioned space (certainly great in more northern areas), you may need to supplement the solar with a grid backup connection or with a battery pack (more on these options momentarily). But that’s okay; remember, these units use the newest technology such that they still function at a high SEER value, so they still cost less to run than traditional heat pumps in the winter, and potentially less than other heating options. A great segue for discussing the two options for solar-powered air conditioning…
What are the two types of solar-powered air conditioning? How are they similar? How are they different?
There are two types of dedicated solar-powered air conditioners (where ‘dedicated’ = a photovoltaic solar array solely focused on running the air conditioner): Off-grid 48v and hybrid 310v. Both have advantages and disadvantages.
In off-grid units, solar panels feed a bank of batteries via an external charge controller which optimizes the solar conversion and ensures that the batteries aren’t overcharged. If it’s sunny, the feed into the batteries from solar will meet or exceed the flow out of the batteries to run the air conditioner. Want the system to run even in cloudy or rainy conditions and/or at night? With deep pockets, it’s no problem to do so, statistically speaking. Just add more battery power and more solar panels. The extra panels will fill the extra batteries to create a reserve for these low-solar times. The challenge hits when it's cloudy or rainy for some days in a row. However, these days may also be cooler, so potentially the draw down of the batteries for cooling may be lower. In summary, the advantage of these units is they are totally independent of the grid. You can literally set them up in the middle of nowhere, and they’ll keep plugging away. For that reason, they’re used heavily in off-grid applications like remote telecom relay stations or remote cabins. And, since they use a 48v DC compressor and DC fans, which is the same voltage as the battery array, they’re simple, since there’s no voltage transformation or rectification of alternating current or blending/combining of the direct current with the alternating current to optimize. The disadvantage is there’s a price for this independence: the cost of these units is higher, since their voltage bus is optimized to accommodate the batteries (48v), and the 48v DC fan and compressor motors are a bit rarer and a bit more expensive. Additionally, the extra solar panels and batteries can easily double the price of the system for 24-hour design vs. daytime design. Finally, the battery setup and maintenance is a component not necessary for hybrid systems.
The newest hybrid solar air conditioner units are off-grid capable…but only during the day. At nighttime or when it’s super cloudy or rainy, they simple can’t work unless they’re plugged in to the grid. But when plugged in, their advanced electronics prioritize solar first, and blend in any required grid AC current, and step up this blended voltage to 310v DC to run the compressor and fan motors. Unlike off-grid units, all of this magic happens within the printed circuit boards of the unit. So, the solar panels are connected directly to the outside unit of the air conditioner without the requirement of an outside control box. And, these units are based on the latest-technology-but-becoming-standard high-efficiency non-solar minisplit inverter compressors and fan motors, so the pricing is favorable for them, even with the additional high-tech electronics they require. These units offer an affordable way, with the help of the grid, to keep going, regardless of conditions.
In common is that both types of units use their efficient variable-speed motors which are inherently direct current (same as the solar panels) to allow them to run on less energy, which is essential to make solar-powered air conditioning financially attractive.
Solar air conditioning for commercial users
Commercial energy rates (kWh) tend to be around half the rate of residential (depending on your jurisdiction), so where’s the savings? Well, commercial utilities also bill based on facility and demand charges derived from power (kW) requirements. So, if, say you can shave off 1kW of power using a solar-powered air conditioner from your peak 15-minute period of the month, or, in some jurisdictions, your peak 15-minute period of the whole year, the savings may be substantial and cumulative on top of your energy dollar savings.
Niche uses for commercial solar powered air conditioners include dehumidification of grow houses or locations where there have previously only been swam coolers, supplemental cooling to high-BTU areas like server room, or larger solar-powered variable refrigerant flow units (which operate similar to other hybrid units) to save on cooling the entire facility based on both the kWh and kW savings outlined above.
What's the future of solar-powered air conditioning?
The future of solar air conditioning looks bright! In the immediate future, the focus is to lower the installation friction of these smaller systems for do-it-yourselfers. Already, since some have plug-in backup power to run hybrid, there's no need to install new circuits or breakers for these units. And, many companies are now focused on making the refrigerant lines plug-and-play as well, which will obviate the need for pulling a vacuum in the installation process. Much of the cost (north of 25%) of solar air conditioning come from the high duty rates imposed on Chinese-made units and solar panels. But more components are now being made in lower-tariff countries or in the US, and more are coming with the push toward easy-to-source-materials cadmium telluride panels, and with the advent--and stability in the real world after much hype in the lab--perovskite paint-on cells. This, along with the new 30% Investment Tax Credit off of solar equipment and installation and off of EnergyStar approved (solar) heat pumps and their installations--both good unitl 2033-- will help make solar air conditioning significantly more affordable.
And, there's a growing drive to off-grid living. Solar allows folks to build in remote areas. And, with easier battery backup, the need for the grid becomes diminished even for city (or suburb) slickers with enough room for solar panels. As more and more things we love begin to run inherently on DC power (e.g., computers, TVs, solar-powered air conditioners), this trend fits nicely with the DC power and DC storage of solar. As these units are developed to run directly from DC, power usage for them will decrease.
The International Energy Agency forecasts the number of air conditioners to increase to 5.6 billion by 2050 (up from 1.6 billion as of 2018). The bulk of this growth will be in emerging markets, such as India. There, air conditioning currently accounts for 45% of peak grid demand. And, of course, it's a vicious cycle of these additional units running using fossil fuel-derived grid power (if you're a believer in global warming from this source). So, solar (and solar-powered air conditioning) must become more and more important as a solution.
And, the same variable refrigerant flow (VRF) technology and built-in electronics used in mini splits to allow them to easily run off of solar is now moving into larger units that are 10 or 20x the size of most mini split. These units will allow commercial buildings, schools, and apartments complexes to save money and save the environment with solar air conditioning.
In short, unlike other power sources (including renewable sources), solar's performance and the DC revolution (where high-efficiency DC-powered air conditioners are Exhibit A) will help things to all work out in the future.
