The Details

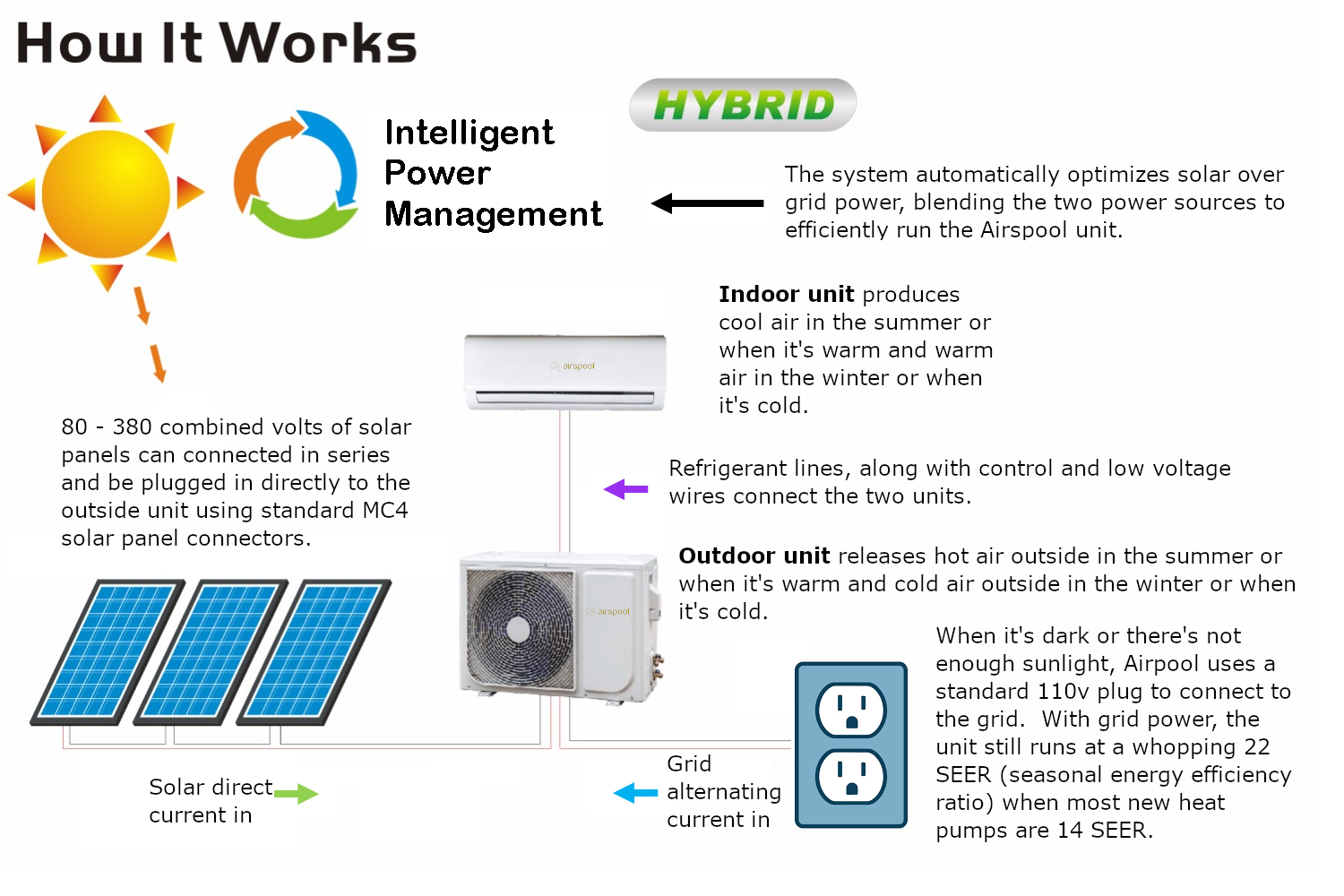

How it Works
Airpsool is a DC air conditioner (or DC heat pump, actually, so it will heat your indoor space in the winter). What is a DC air conditioner? A DC (direct current) air conditioner has an indoor fan motor, an outdoor fan motor, and a compressor that all run on DC (direct current), so the solar panel energy, which is also DC, can flow directly and efficiently to these motors to power them. And Airspool also has an AC (alternating current) plug so you can plug in to run your unit at a super-efficient 22 SEER when it's cloudy or nighttime. The details of the system are below.
Tech Specs
| Model/Unit Name: MS12 | |||
|---|---|---|---|
| Operating range | -10°C (14°F) </ heating; cooling</58C (135.4°F) | T3 design | |
| Normal coverage area | sq. ft. | +/- 500 | |
| Power Supply | AC power | ph-v-hz | 1 Ph 110/115/120V, 50 or 60 Hz; or 1 Ph 220/230/240V, 50 or 60 Hz |
| DC power (solar panels in series) | v | 80-380V | |
| DC power current | a | </=20A | |
| Recommended solar panels | pcs. | 4 pc. @ +/-380w/panel | |
| Rated Cooling | Capacity (T1) | w | 3510 (900-3900) |
| btu | 12000 (3000-13300) | ||
| Power input (T1) | w | 940 (190-1270) | |
| Capacity (T3) | w | 2910 | |
| btu | 9900 | ||
| Power input (T3) | w | 1050 | |
| Rated Heating | Capacity | w | 4100 (1000-4500) |
| btu | 14000 (3000-15300) | ||
| Power input | w | 1170 (190-1700) | |
| SEER2 | / | 22 | |
| HSPF2 | / | 8.5 | |
| T1 EER (w/w)/(btu/w) | / | 3.75/12.75 | |
| T3 EER (w/w)/(btu/w) | / | 2.75/9.45 | |
| COP (w/w)/(btu/w) | / | 3.50/11.95 | |
| Dehumidification capacity | pints/day | 66 | |
| l/h | 1.3 | ||
| Compressor | Model | / | WHP04200 |
| Type | / | 2x ROTARY | |
| Brand | / | Highly | |
| Indoor fan motor | Power | w | 15 |
| Speed (Turbo/Hi/Mi/Lo) | r/min | 1300/1200/1100/950 | |
| Indoor air flow (Turbo/Hi/Mi/Lo) | cfm | 318/285/256/206 | |
| m3/h | 540/485/435/350 | ||
| Indoor noise level (Turbo) | dB(A) | 42.5 | |
| Indoor unit | Dimension (W×H×D) | inches | 33.07x8.07x11.6 |
| mm | 840×205×295 | ||
| Packing (W×H×D) | inches | 36.22x11.4x14.17 | |
| mm | 920×290×360 | ||
| Net weight/Gross weight | lbs | 19.8/27.6 | |
| Kg | 9.0/12.5 | ||
| Outdoor fan motor | Power | w | 40 |
| Speed | r/min | 880 | |
| Outdoor air flow | m3/h | 2100 | |
| Outdoor noise level | dB(A) | <52 | |
| Outdoor unit | Dimension (W×H×D) | inches | 31.56x22.2x12.7 |
| mm | 802×564×323 | ||
| Packing (W×H×D) | Inches | 35.8x24.5x15.9 | |
| mm | 910×622×405 | ||
| Net/gross weight | lbs | 73.8/82.7 | |
| kg | 33.5/37.5 | ||
| Refrigerant type | R410A | ||
| Max design pressure | psig | 623/218 | |
| MPa | 4.3/1.5 | ||
| Refrigerant pipe | Gas side/liquid side (inch) | inches | 3/8 1/4 |
| Max. refrigerant pipe length | ft. | 49.2 | |
| m | 15 | ||
| Max. difference in elevation | ft. | 26 | |
| m | 8 | ||
| Drain pipe size | mm | 16 | |
| Refrigerant connection copper pipe length | m | 3 | |
| Connection wire length | m | 4 | |
| Electronic Expansion Valve | / | Yes | |
| Loading QTY 40'/ 20' | sets | 200/85 | |
